Gamma P Lat.0-90°

*Mod. Gamma P*
	Main tecnical specs : A.R. gear 370 tooth D370mm in B14 bronze D.EC. gear 300 tooth D300mm in B14 bronze Stainless steel worms D35mm Stainless steel shafts with high precision D80mm internal diameter conic bearings Stainless steel counterweights 75Kg Stainless steel full counterweights shaft D60mm Saddle plate base D320mm Instrument weight max capacity 270Kg Instrument weight ideal capacity 210 kg Latitude setting from 0 to 90° Azimut setting 20° Weight of 210Kg without counterweights

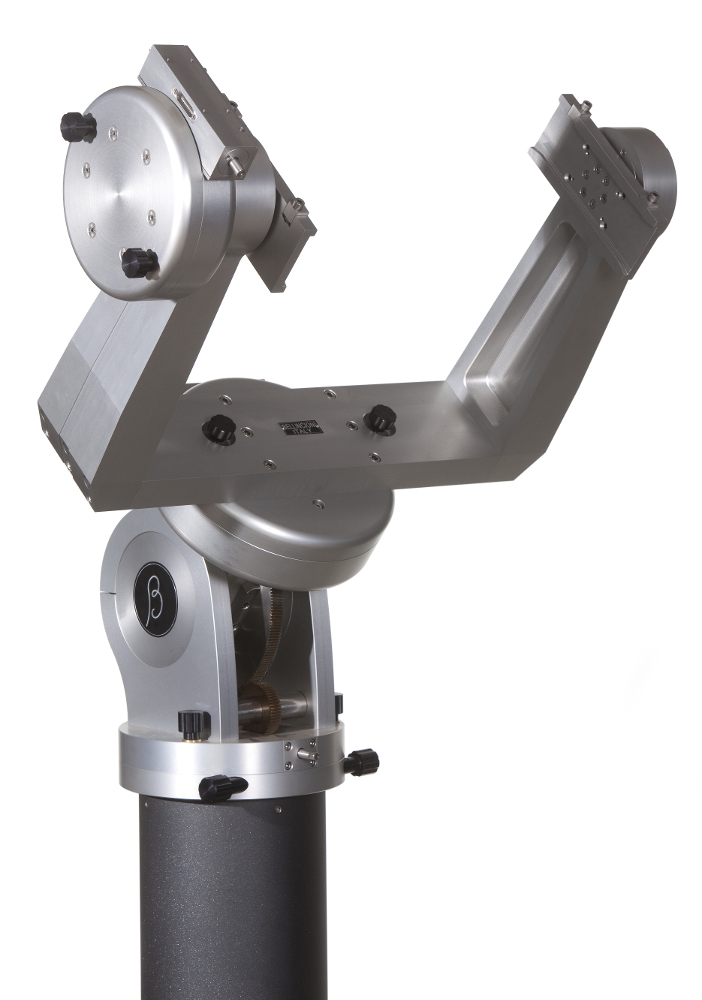

*Mod. Gamma P a forcella*
	Main tecnical specs :A.R. gear 370 tooth D370mm in B14 bronze D.EC. gear 300 tooth D300mm in B14 bronze Stainless steel worms D35mm Stainless steel shafts with high precision D80mm internal diameter conic bearings Instrument weight in equatorial capacity 140Kg Instrument weight in altazimuth capacity 210 kg Latitude setting from 0 to 90° Azimut setting 20° Weight of 210Kg
